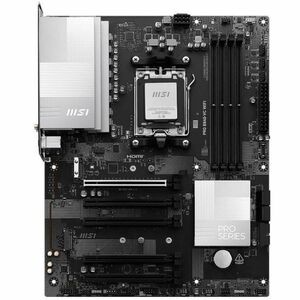

MSI PRO B840-VC WIFI AMD B840 AM5 ATX Motherboard

Support: (626) 913-0828

MSI PRO B840-VC WIFI AMD B840 AM5 ATX Motherboard

SKU:	800-14106C

Integrated Radeon Graphics - HDMI
Max 256GB / 4x DDR5 DIMM / Up to 8000 (O.C.)
4x SATA 6GB/s, 2x M.2 / RAID 0, 1, 10
Up to 2x USB 3.2 G2 (1x USB-C), 5x USB 3.2 G1 (1x USB-C), 6x USB 2.0
1x PCie 4.0 x16, 1x PCIe 3.0 x16 (x4), 3 x PCIe 3.0 x16 (x1)

Our Price:	Login to see price
Availability:	Usually ships within 1-2 business days

Accessories

: AMD Ryzen 7 9700X 8-Core 3.8GHz /8MB cache AM5 CPU (Retail)

: AMD Ryzen 7 9800X3D 8-Core 4.7GHz /8MB cache AM5 CPU (Retail)

: Crucial 16GB DDR5-5600 PC5-44800 CL46 288-pin UDIMM

MSI PRO B840-VC WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 2.5G LAN, PCIe 4.0 M.2 ready for the AMD Ryzen 9000 series processors.

Description

Specifications

CPU Support

AMD Ryzen 9000/8000/7000 series processors

Number of Processor (s)

Single (Not Included)

Chipset

AMD B840

System Bios

UEFI BIOS

Video card slot

PCIe 4.0 x16

Number of Memory Slots

Type of Memory Supported

Up to DDR5-8000(O.C)+ Non-ECC, Un-buffered Memory

Maximum RAM

256GB

Back Panel I/O

1 x USB 3.2 Gen2 Type-C
1 x USB 3.2 Gen2 Type-A
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0
1 x HDMI
1 x RJ45 LAN
1 x Audio I/O
2 x Antenna connector

Number of PCI/PCI-Express Slots

1 x PCIe 4.0 x16
1 x PCIe 3.0 x16 (x4 electrical)
3 x PCIe 3.0 x16 (x1 electrical)

Integrated SATA/SAS

4 x SATA 6Gb/s

# of M.2 Ports

1 x M.2 with M key, type 2260/2280 support PCIe 4.0 x4 mode
1 x M.2 with M key, type 2260/2280/22110 support PCIe 4.0 x4 mode

Integrated Audio

Realtek ALC897 7.1 High Definition Audio CODEC

Integrated Video

Integrated Graphics from processor (Actual support may vary by CPU)

Integrated LAN

Realtek 2.5Gb Ethernet

Integrated Wifi

Wi-Fi 7

USB

1 x USB 3.2 Gen2 Type-C on Back Panel I/O
1 x USB 3.2 Gen2 Type-A on Back Panel I/O
2 x USB 3.2 Gen1 Type-A on Back Panel I/O
2 x USB 3.2 Gen1 Type-A via header
1 x USB 3.2 Gen1 Type-C via header
4 x USB 2.0 on Back Panel I/O
2 x USB 2.0 via header

Serial/Parallel Ports

1 x Serial port via header

Form Factor

ATX

Dimensions

12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: MSI
